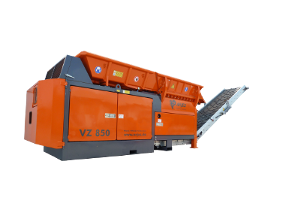

VZ 850
Product Description
When our technical director Norbert Hammel created a double shaft shredding machine VZ 750, it was a start of further development of innovative technologies in creating and manufacturing of new shredding equipment. Using the hydraulic drive in this type of shredder makes it possible to apply it to all kinds of material, and shred even oversize chunks.
BENEFITS OF VZ 850:
Trailer hitch and wheel axle
Transportable around the site at small distances via loaders etc.

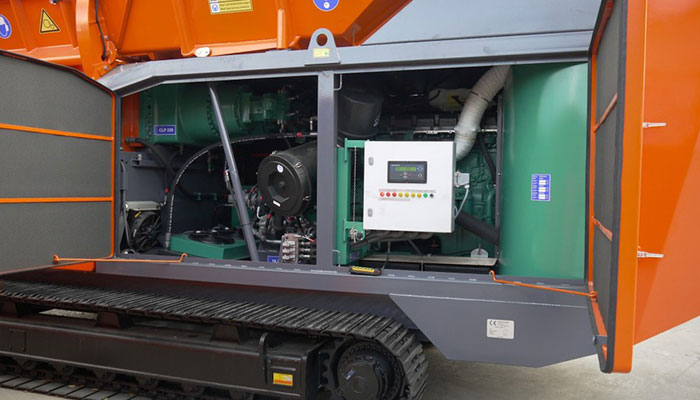

Drive and control

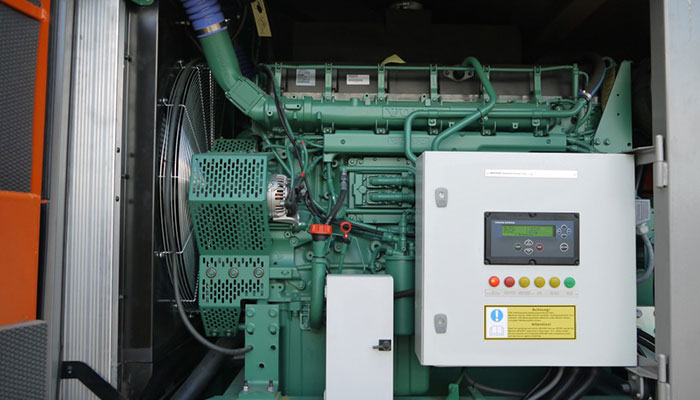

Diesel engine 768 HP. Central control panel with multifunctional screen to read the machine data.

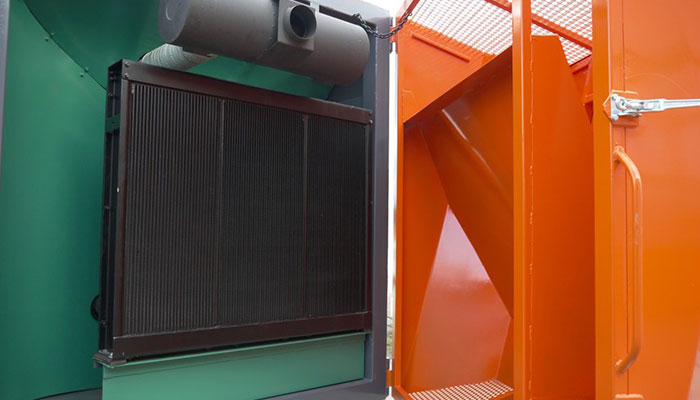

Air circulation system
Optimized air circulation system for maximum production capacity.
Body

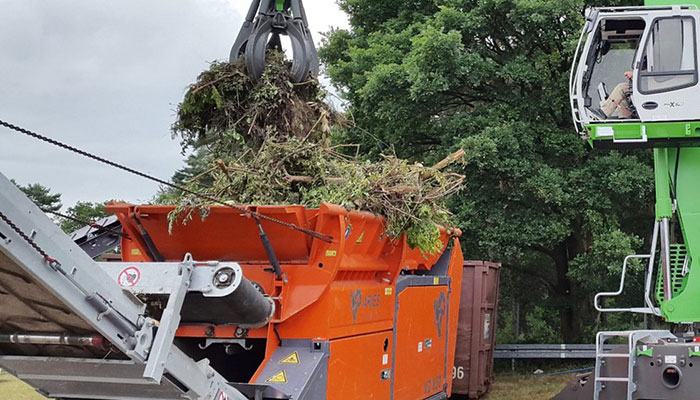

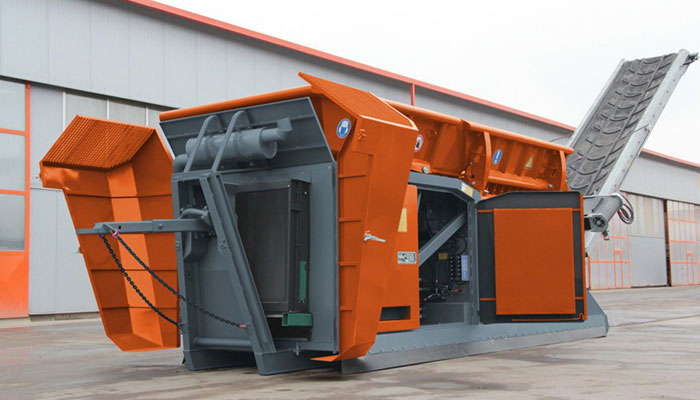

Two tilting hoppers (front and rear) ensures smooth material feeding into working area.
Overbelt magnet separator
The magnet belt separates metal particles.

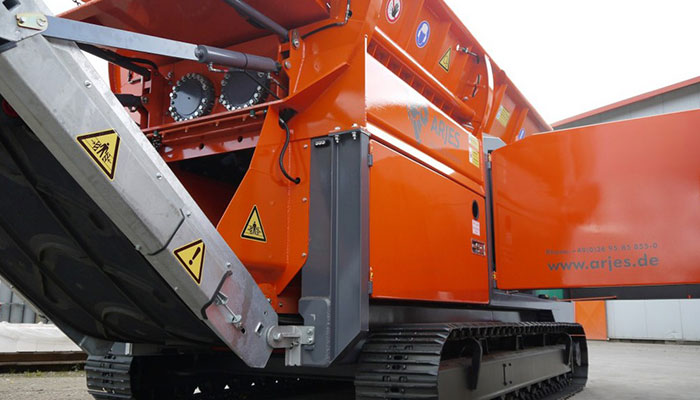

Discharge conveyor
The height of material discharge is up to 4,8 м.

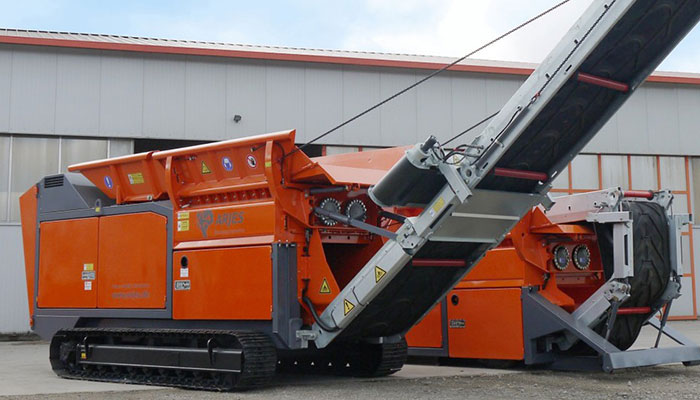

Track system
The track system provide for machine mobility and use on rough terrain.

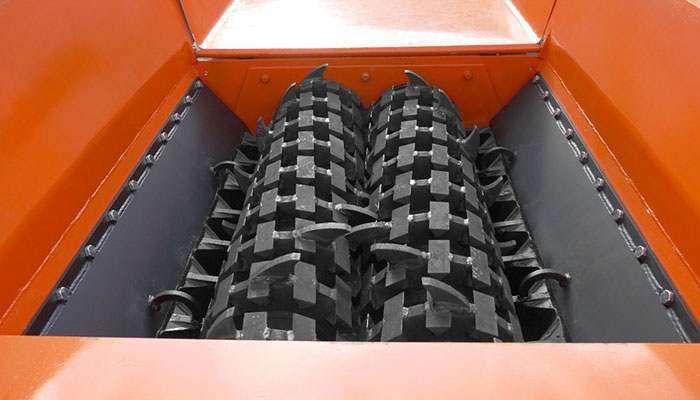

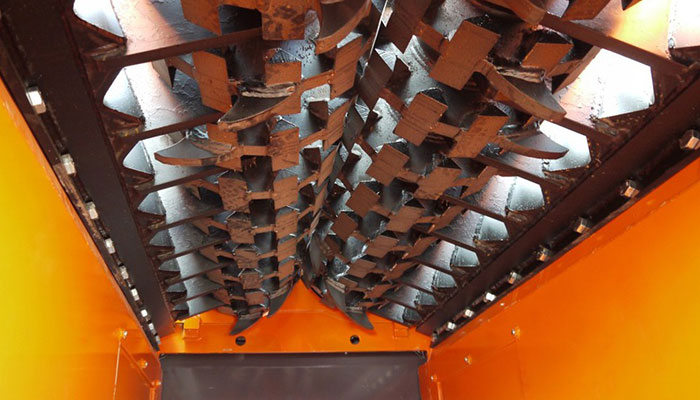

Shafts
Patented T-blade profile ensure precise cutting process and energy saving up to 15%. Automatic reverse function protects against fracture of the cutting tools.
Sound insulation
Effective sound insulation and low engine speed provide for low noise level (up to 82 dBA).
Integrated filter
Frees the engine compartment of dust particles.
Maintenance
Maintenance friendly modular design.
Options

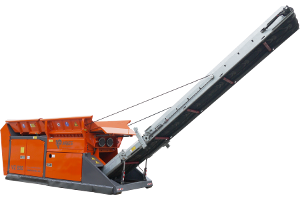

Diesel drive (D)

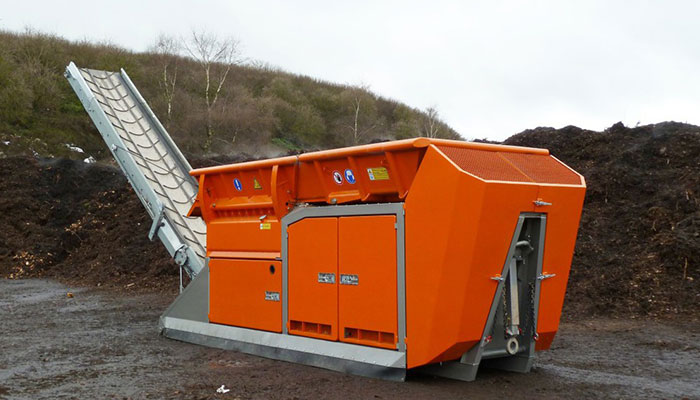

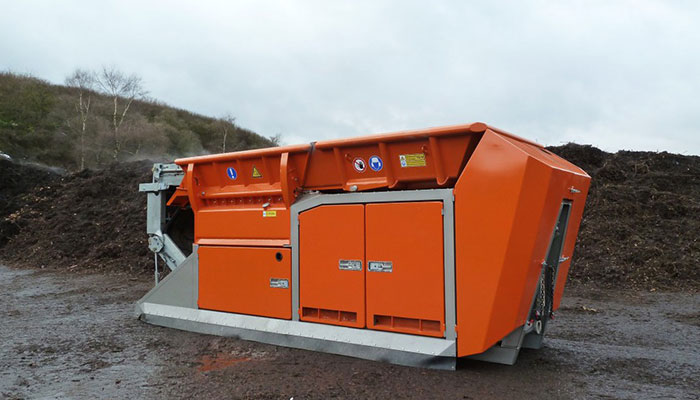

The version with diesel engine and wheel axle is the most popular among customers. Due to the stable base frame and the lift hook, this shredding machine can be easily repositioned to various locations required. Using the wheel loader, the shredding machine can be quickly and easily moved around the site by the integrated drawbar.

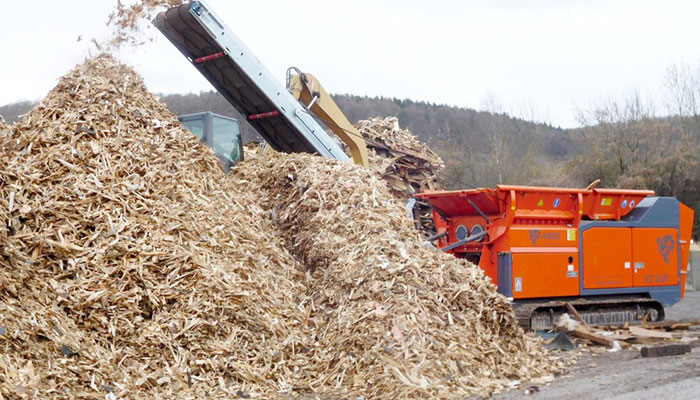

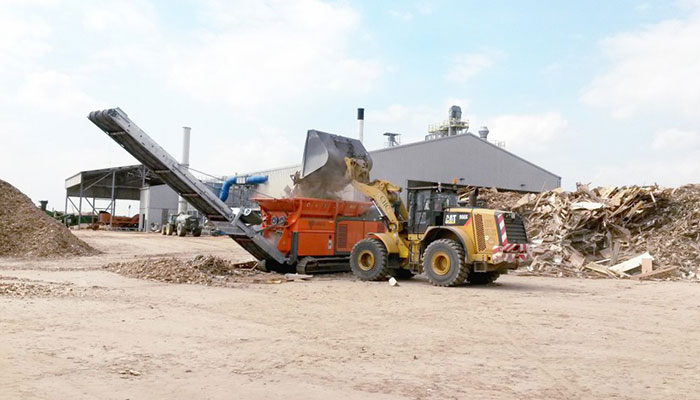

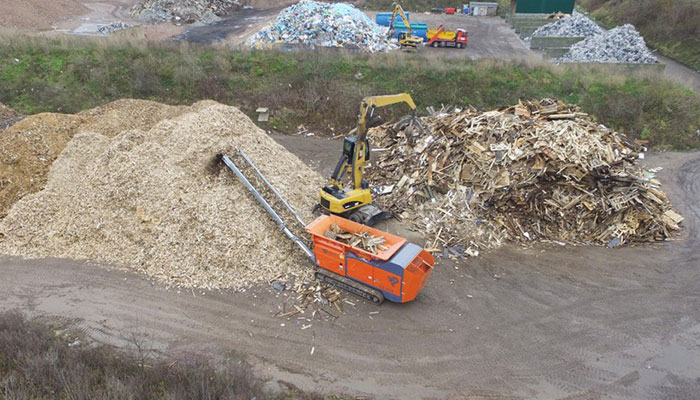

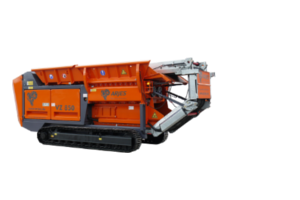

Diesel tracks (DK)
For mobile use we offer the version with track system. It enables the shredding machine moving independently around the site without any assistance required. This version can also be used on the rough terrain. Besides, the track system can be supplied with rubber track shoes to protect concrete or asphalt surface. The machine is controlled by a 21-channel radio remote control.
Diesel trailer (DT)
We offer electric version for the situations where special restrictions as to emissions and noise level apply. Also, it is possible to divide the shredding machine into several separate units to set apart the drive compartment from the shredding area.
Specifications
| Model | VZ 850 D | VZ 850 DK | VZ 850 E |
|---|---|---|---|
| Power | 565 kW/768HP | 565 kW/768HP | 2х160 kW |
| Dimensions: length-width-height (mm) | 8.000х2.500х2.800 | 8.800х2.900х3.200 | 8.200х2.500х2.900 |
| Shafts (mm) | 2.000 | 2.000 | 2.000 |
| Weight (kg) | 20.000 | 26.000 | 20.000 |
This information refers to standard models, dimensions of special models can differ from the values specified here.
